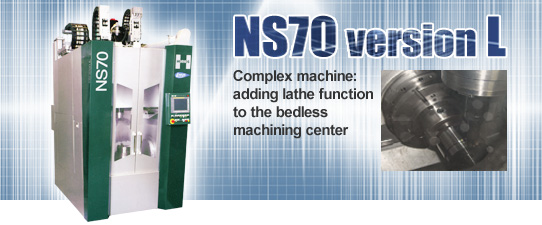

NS70 version L
| Type |
NS70 version L / NS80 version L |
| Travel X-axis | 500mm |
| Travel Y-axis | 450mm |
| Travel Z-axis | 500mm |
| Travel A-axis | 0～-135° |
| Travel B-axis | 360° |
| Space for Work | φ320mm x 350mm |
| Max. weight | 150kg |
| Rapid traverse rate | 62m/min (XYZ） |
| Max. rotation speed | 12000min-1 |
| Tool holder | HSK-A63,HSK-T63 |
| Tool storage capacity | 16 (24,30） |
| Footprint | 1,450mm x 3,380mm (incl.chipconveyor) |
*(Standard Options)
