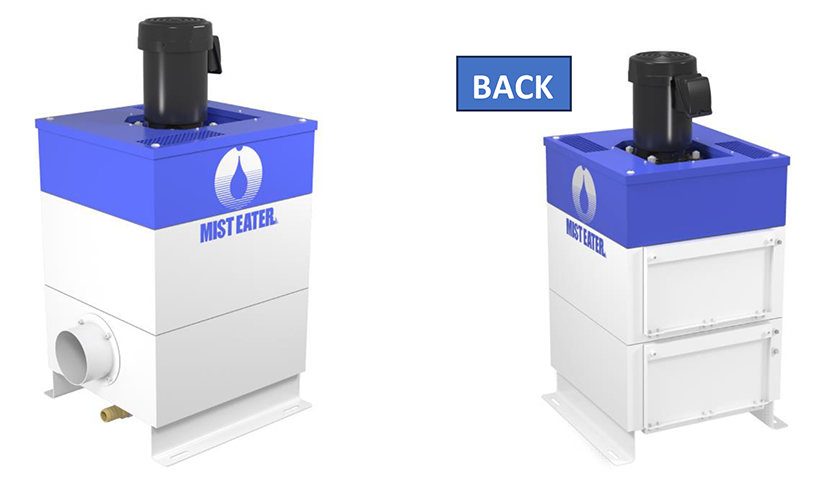

Mist eater R
Features
1. HIGH EFFICENCY
・Capable of collecting 98% or more of mists 1μm and above.
2. LONG LIFE
・Powerful self-cleaning action by centrifugal separation.
・Can be cleaned by spraying during collection operation.(optional)
3. EASY MAINTENANCE
・Mist separator can be easily removed for cleaning and replacement.
USE
・Machine Tools Processing (Oil-based coolant / Water soluble coolant)
・Other equipments that generate mist (ex. Washing machine and etc..)
Specification
| Type | Power | Electric Motor （kW） |
Performance （50/60Hz） |
Max Temp. （℃） |
Ambient Temp. （℃） |
Weight （kg） |
Intake Diameter （mm） |
Color | ||
| Max Airflow （m3/min） |
Efficiency | Ambient Noise （dB(A)） |
||||||||
| ME-10R | 3 PHASE AC200V |
0.75 | 7.7/9.2 | 1μm and above 98％ |
74 and below |
60 | 40 and below |
59 | φ124 | White Blue |

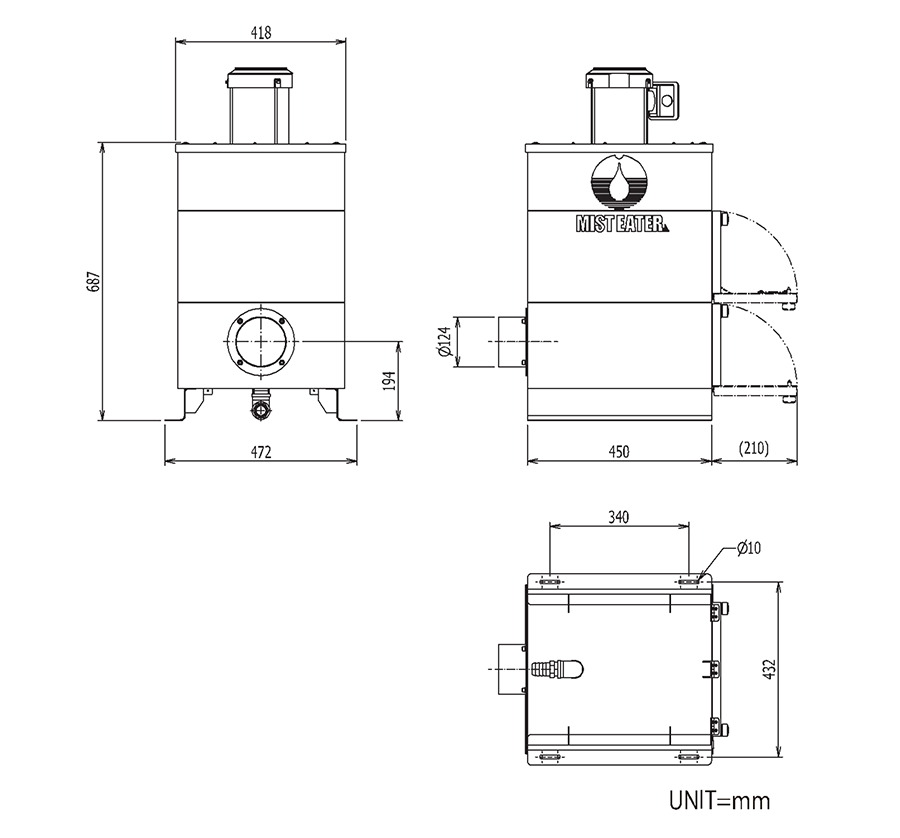

Dimensions
