Grinding center for processing large brittle materials

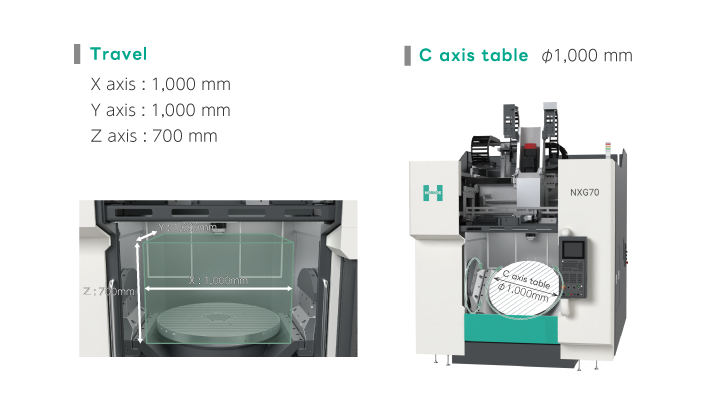

5-axis machine equipped with a 1,000 mm diameter C-Axis table.
Compact yet provides a spacious machining area.
Main features
-
-

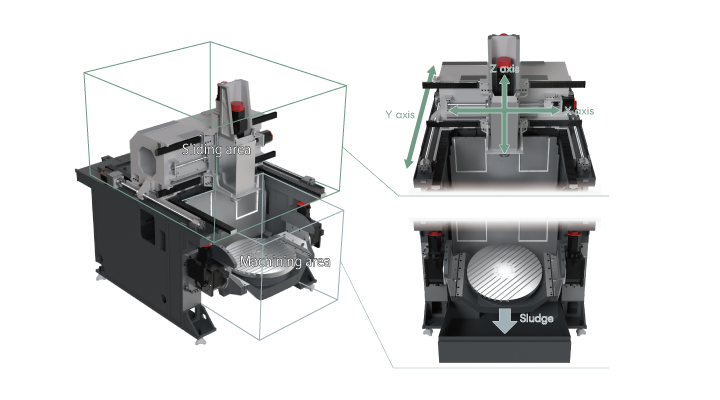

BEDLESS structure
All slide bases are positioned on the upper part of the base.
By separating the sliding area from the machining area, it prevents the influence of sludge and maintains high-precision machining.
Additionally, since there are no structural components beneath the machining area, sludge generated during machining can be discharged directly outside the machine.
Main Specifications
- Travel (X, Y, Z)
- 1,000mm、1,000mm、700mm
- Rapid traverse rate
- 24m/min-1
- Tool holder
- HSK-A63
- Footprint
- 2,580mm x 4,050mm
- Max. rotation speed
- 12,000min-1
- Tool storage capacity
- 40
Spacious machining area
Since there are no obstructive structural components beneath the machining area, vertical rotation of large brittle materials along the XZ axis is possible.
